Description

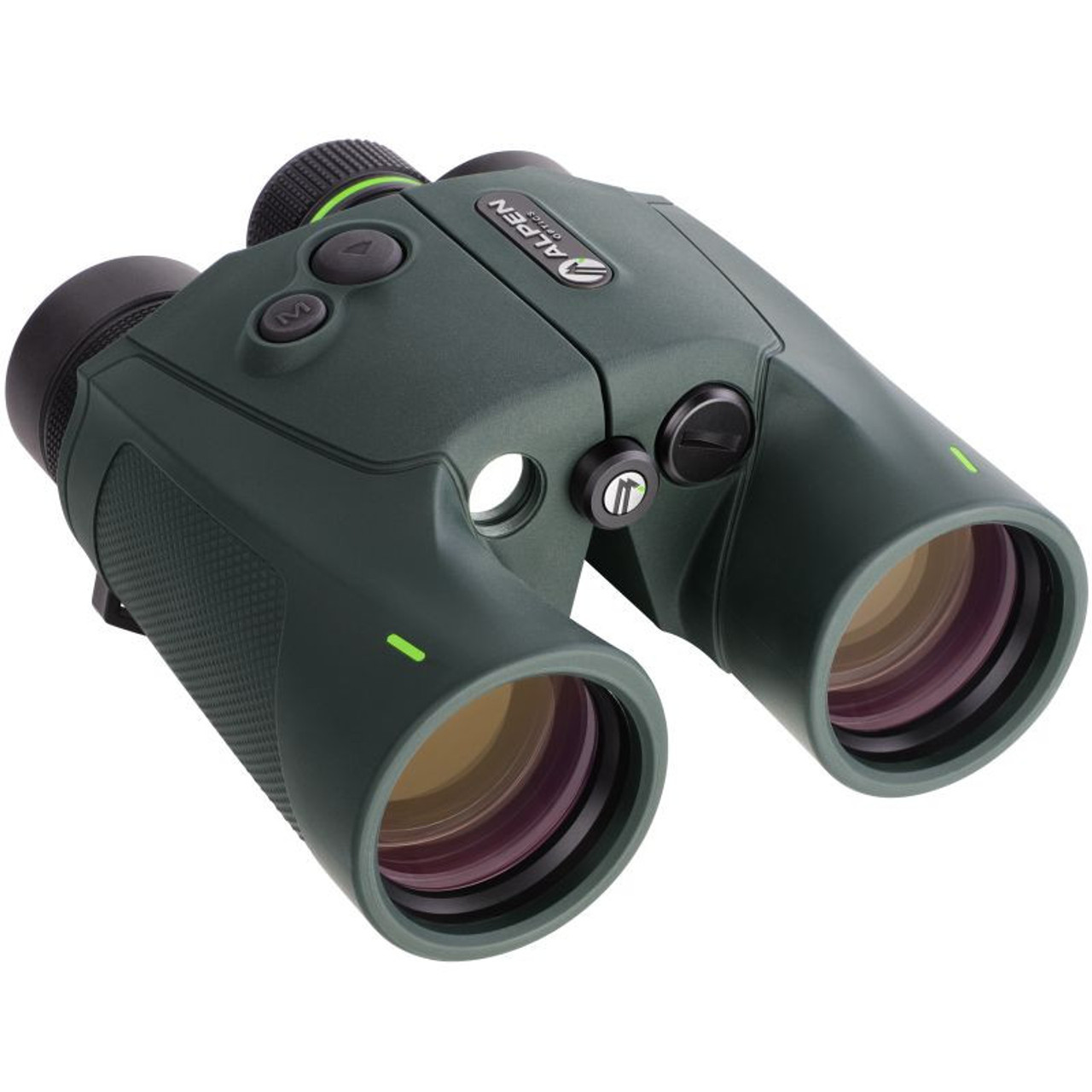

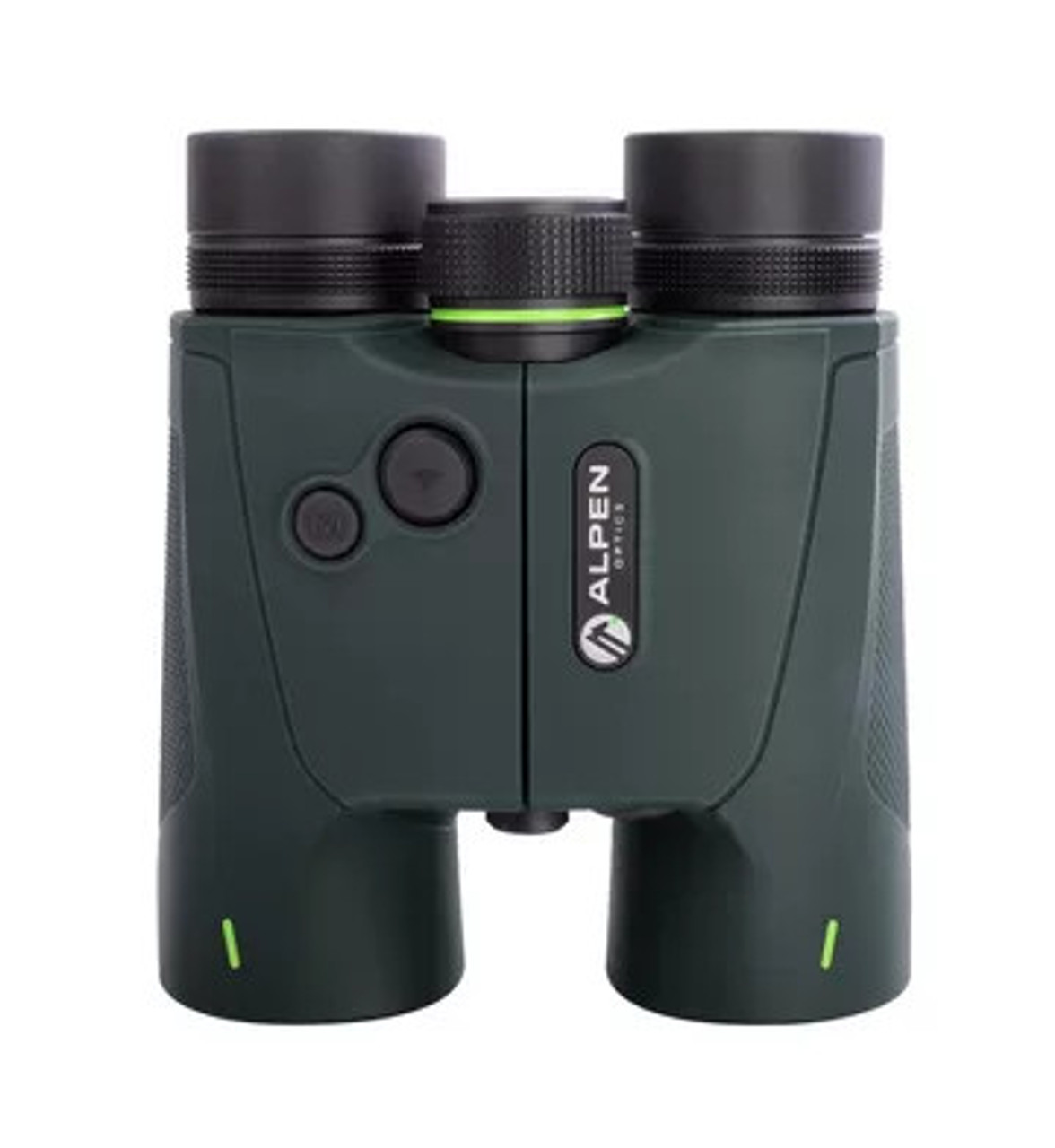

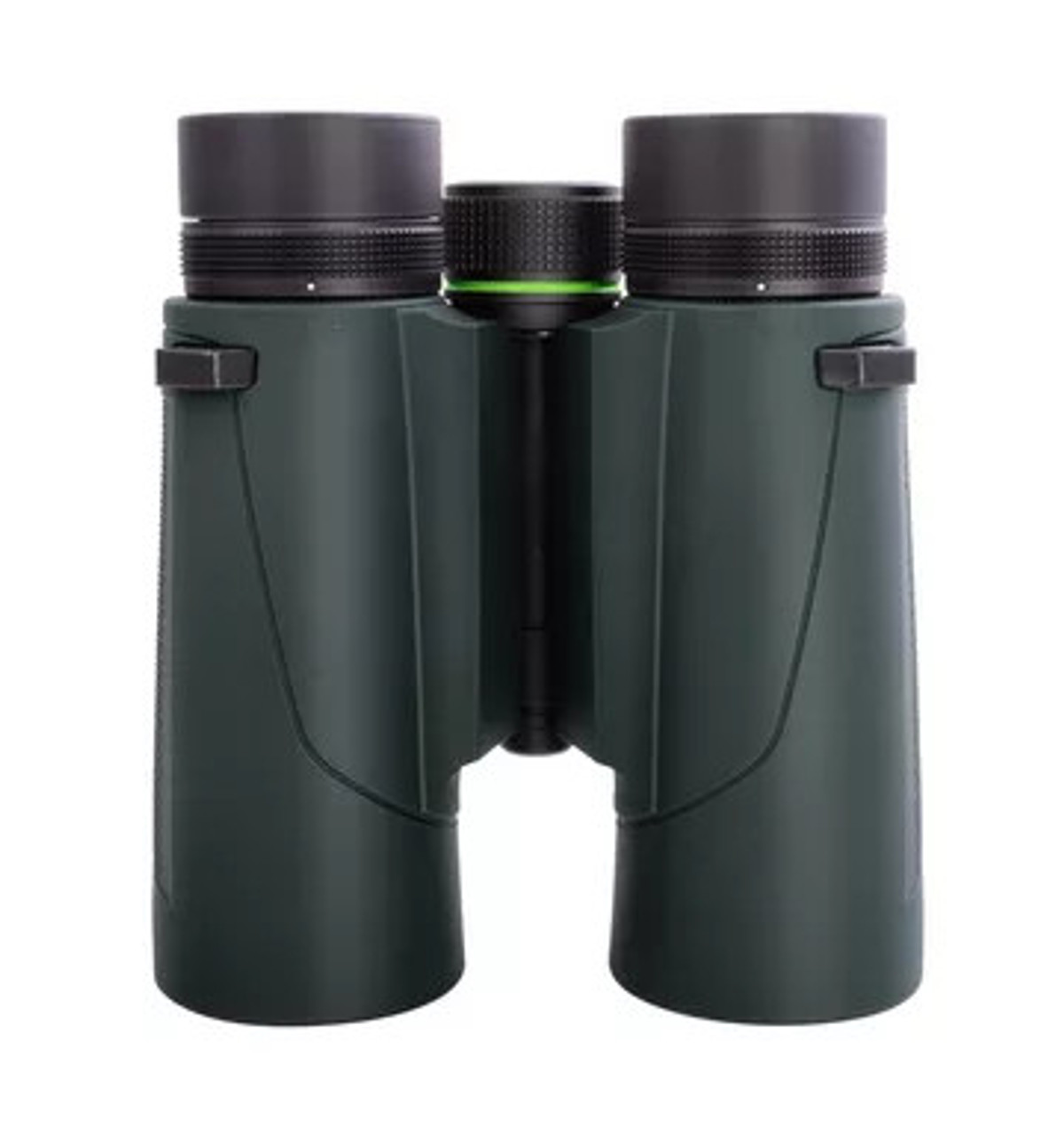

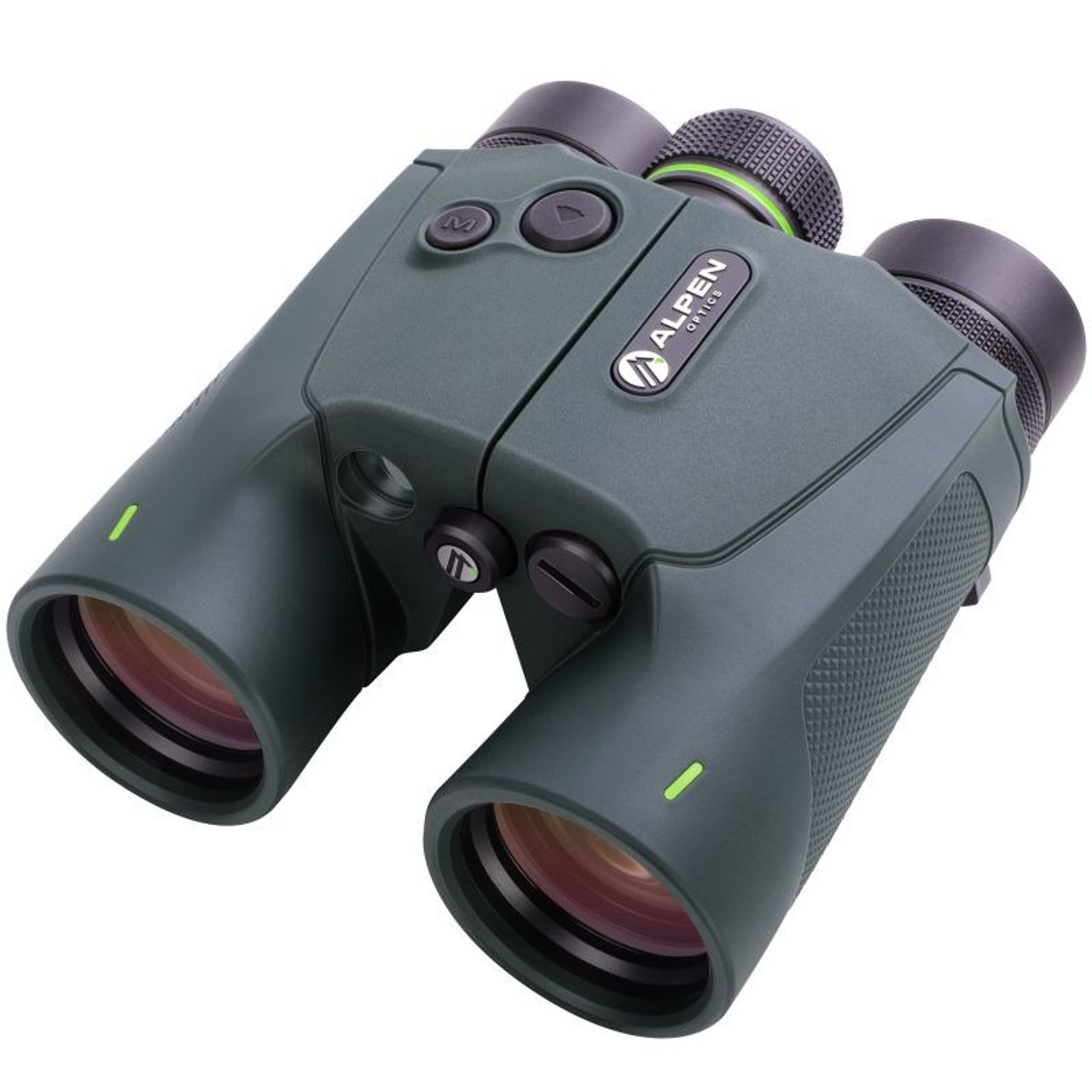

The ALPEN OPTICS Apex XP 10×42 Laser Rangefinder Binoculars combine high-quality optical performance with a built-in laser rangefinder, giving you the convenience of viewing and measuring distance through a single compact optical system.

Featuring 10x magnification, 42 mm objective lenses and ED (Extra-Low Dispersion) glass, the Apex XP is designed to deliver sharp, high-resolution images with excellent colour fidelity and strong light transmission.

The integrated laser rangefinder can measure distances of up to 2,286 metres / 2,500 yards, while the bright red OLED display provides clear distance readings with adjustable brightness.

With a rugged magnesium housing, protective rubber armouring and waterproof construction, the Apex XP 10×42 is built for demanding outdoor conditions and is particularly well suited to hunting, wildlife observation and other field applications.

Key Features

• 10x magnification for detailed long-distance observation
• 42 mm objective lenses provide a strong balance between light gathering and portability
• ED (Extra-Low Dispersion) glass for excellent resolution and colour fidelity
• BaK-4 roof prisms with fully multi-coated optical surfaces
• Integrated laser rangefinder
• Range measurement up to 2,286 m / 2,500 yards
• Red OLED display with adjustable brightness
• Line-of-Sight (LOS) and angle-compensated distance measurement
• Scan Mode for continuously updating distance measurements
• Durable magnesium housing
• Protective rubber armouring
• Waterproof construction
• Twist-up eyecups
• Generous ±5 dioptre adjustment
• Tripod adapter thread
• Compact and relatively lightweight design

High-Performance ED Optics

The Apex XP uses ED glass (Extra-Low Dispersion) to help reduce chromatic aberration and provide improved colour fidelity and image resolution.

Combined with BaK-4 roof prisms and fully multi-coated optical surfaces, the optical system is designed to maximise light transmission and deliver bright, detailed images in a variety of lighting conditions.

The 10x magnification provides additional detail for observing distant subjects, while the 42 mm objective lenses offer a practical balance between optical performance and overall size.

Integrated Laser Rangefinder

One of the major advantages of the Apex XP is its integrated laser rangefinder.

Instead of carrying a separate pair of binoculars and rangefinder, the Apex XP combines both functions into a single optical device.

The rangefinder can measure distances up to 2,286 metres (2,500 yards) under suitable conditions.

The system also provides different measurement functions, including:

• Line of Sight (LOS) distance
• Angle-compensated distance
• Scan Mode for continuously updated measurements

This makes the Apex XP particularly useful when accurate distance information is important during outdoor observation.

Clear Red OLED Display

Distance information is displayed through a red OLED display positioned within the optical view.

The display brightness can be adjusted to suit different lighting conditions, helping maintain clear visibility without unnecessarily distracting from the observed scene.

Rugged Magnesium Housing

The Apex XP features a durable magnesium housing protected by rubber armouring.

The combination provides a solid yet relatively lightweight construction while offering additional protection and a secure grip during outdoor use.

The binoculars are also designed to be waterproof, making them suitable for use in changing weather conditions.

Comfortable Viewing

The Apex XP features twist-up eyecups and a wide centre focusing mechanism for convenient adjustment.

With ±5 dioptre adjustment, the optical system can be individually fine-tuned to accommodate differences between the user’s eyes and provide a more comfortable viewing experience.

Compact 10×42 Configuration

The 10×42 configuration is a popular choice for users looking for a balance between magnification, optical performance and portability.

With dimensions of approximately 147 × 132 × 70 mm and a weight of approximately 926 g, the Apex XP provides substantial optical and ranging capability while remaining practical to carry in the field.

Tripod Compatible

A tripod adapter thread is included in the design, allowing the binoculars to be mounted to a compatible tripod or support system.

This can be particularly useful for extended observation sessions where additional stability is beneficial.

Ideal Applications

The ALPEN OPTICS Apex XP 10×42 is well suited to:

• Hunting
• Wildlife observation
• Outdoor observation
• Field use
• Long-distance viewing
• Nature observation
• Situations where optical observation and distance measurement are required in one device

Specifications

Specification	Details
Brand	ALPEN OPTICS
Model	Apex XP 10×42 LRF
Item Number	ALP191042
EAN	4007922076300
Magnification	10x
Objective Lens Diameter	42 mm
Optical Glass	ED (Extra-Low Dispersion)
Prism Type	Roof / BaK-4
Lens Coating	Fully Multi-Coated
Rangefinder	Integrated Laser Rangefinder
Maximum Measurement Distance	2,286 m / 2,500 yd
Display	Red OLED
Display Brightness	Adjustable
Measurement Modes	LOS / Angle Compensation / Scan Mode
Dioptre Adjustment	±5
Waterproof Rating	Yes – 1 m / 30 min
Dimensions	Approx. 147 × 132 × 70 mm
Weight	Approx. 926 g
Tripod Mount	Yes
Housing	Magnesium with Rubber Armouring
Battery	1 × CR2
Eyecups	Twist-Up

What’s Included

• ALPEN OPTICS Apex XP 10×42 Laser Rangefinder Binoculars
• Protective carrying case
• Neck strap
• CR2 battery
• Cleaning accessories

Product Highlights

10x Magnification • 42mm Objective • ED Glass • BaK-4 Prisms • Integrated Laser Rangefinder • Up to 2,286m Range • Red OLED Display • Scan Mode • Magnesium Housing • Waterproof

One Optical System. Two Essential Functions.

The ALPEN OPTICS Apex XP 10×42 Laser Rangefinder Binoculars combine detailed 10x optical observation with precise distance measurement in a single, rugged and field-ready device.

For hunters, outdoor enthusiasts and anyone who regularly needs both magnification and distance information, the Apex XP provides a practical all-in-one solution without the need to carry separate binoculars and a rangefinder.
